Vista2D the new generation of data visualization

Latest News :

28.08.2004
Vista2D Version 3.2.6 released.

Navigation go up ...

Gallery

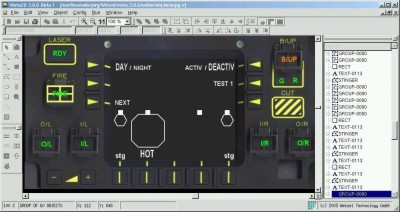

Armament Control Panel

Panel Simulation

  Panel Simulation
  Identic functionality as hardware equipment
  Direct CAN-Bus interface
  Fast and easy modification
  Used by Eurocopter Deutschland GmbH

Instrument Simulation

  Fast prototyping of instruments
  any pre or customer defined interface
  easy integration into own applications (e.g.) OpenGL Perfomer Apps.
  Used for Instructor Operator Station

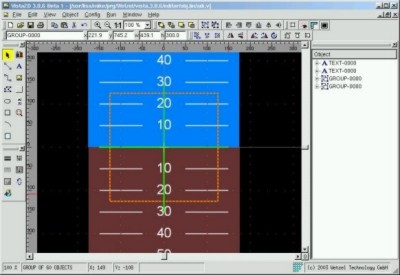

ADI

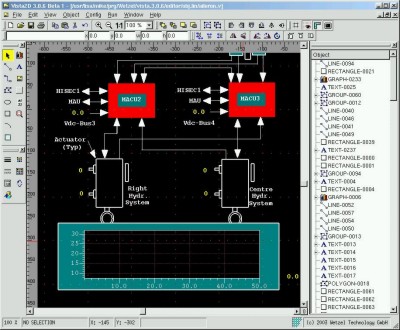

Hydraulic System

Data Visualization

  Visualization of data in any form
  any pre or customer defined interface
  easy integration into own applications (e.g.) OpenGL Perfomer Apps.
  Used for Flight Test purpose at Fairchild Dornier

Panel Simulation

  same behaviour as original simulation hardware
  any pre or customer defined interface
  easy integration into own applications (e.g.) OpenGL Perfomer Apps.
  Used for Prototyping and Operator Station

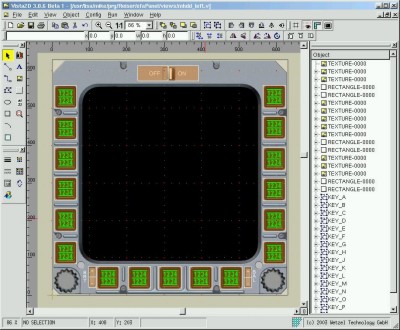

Head Down Display

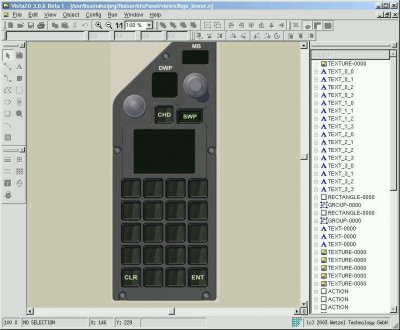

Side Panel

Panel Simulation

  same behaviour as original simulation hardware
  any pre or customer defined interface
  easy integration into own applications (e.g.) OpenGL Perfomer Apps.
  Used for Prototyping and Operator Station

Data visualization

  visualization of engine parameters
  any pre or customer defined interface
  mixed display of charts and animated objects
  Uses for flight test and simulation
Engine Control

Vista2D is a vector based graphical editor which allows to animate the created objects in any way. Each created object can be linked to an unlimited number of actions and therfore allows an easy visualization of any kind of data. Such actions are for example:

  Rotate of Objects
  Move of Objects
  Scale of Objects
  Change of fill and line color
  Change of visibility
  Fill of Objects
  Change of linestyle
  Text ouput
  graphical representation of variables in graphs

The data for animating objects and charts in Vista2D can be read by different sources:

  Shared Memory
  UDP Sockets
  Constants
  Automatic Test Variables
  Function evaluator
  CAN-Bus (Vista2D supports direct access to different CAN-Interface Boards from Stock Flightsystems including support for the CANaerospace protocoll) This allows to use Vista2D as an powerfull CAN-Bus Monitor.
  Data provided by an application
  any other interface integrated by the customer as a Vista2D plugin

Vista2D can be used in the following applications:

  Data visualization for simulation/flight simulation
  Data visualization for flight test/avionic test benches
  visualization of systems and system states
  easy prototyping of glas cockpit instruments
  prototyping of cockpit panels
  etc.

Vista2D is available for following platforms:

  SGI/IRIX 6.5 or higher
  SUN/Solaris 2.6 or higher
  PC x86 SuSE Linux 6.2 or higher, RED-HAT Linux
  Windows 2000/XP



Download Demo Version and User Manual

Contact
